Railway Fire Resistant Gangway In Train NR Steel Train End Gangways

Brand Name : HTR

Place of Origin : CHINA

MOQ : 10 SETS

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : within 45 days

Packaging Details : Carton

Name : Railway Rubber Diphragem

Shape : Tube

Material : NR and Steel

Working Temperature : -40℃-+40℃

Relative humidity : ≤95%

Altitude : ≤1500m

maximum wind speed : ≤15m/s

Fire Resistance : DIN 5510-2 S1

Contact Now

Product review

A gangway connection (or, more loosely, a corridor connection) is a flexible connector fitted to the end of a railway coach, protecting from windy and raining and enabling passengers to move from one coach to another without danger of falling from the train. It can be divided to following types:

Iron vestibule diaphragm

Rubber vestibule diaphragm

Pucker vestibule diaphragm

Product specification

Standard	TB/T3094-2015 eqv UIC
Item	Standard data(on test piece)
Hardness (Shore A)	73±5
Tensile strength(MPa)	≥19
Elongation(%)	≥440
Resistand to tearing(KN/M)	≥20*2
Flexibility	-30℃≥85% 20℃≥85% 70℃≥85%
after aging for 7 days at 70℃	0-10 shore A
Resistance to Abrasion	≤0.3(cm3/1.61km)
Resistance to Ozone	crake length≤10mm3 crake depth≤1mm4
Resistance to fire	DIN 5510-2 S1
flexural property(5*104)	No crack
brittleness temperature	≤-50

Structure

The main components of rubber gangway are steel frame, rubber sheet which consists of horizontal and vertical tube, inner&outer steel pressing plate and fixing bolts

Frame material:Q235 Thickness:.

Tube Width

It can be customizedThe width of our horizontal rubber is 1650mm, which allows 1200mm width of door.

Tube Height

It can be customized. The longest size of our vertical rubber can reach 2100mm.

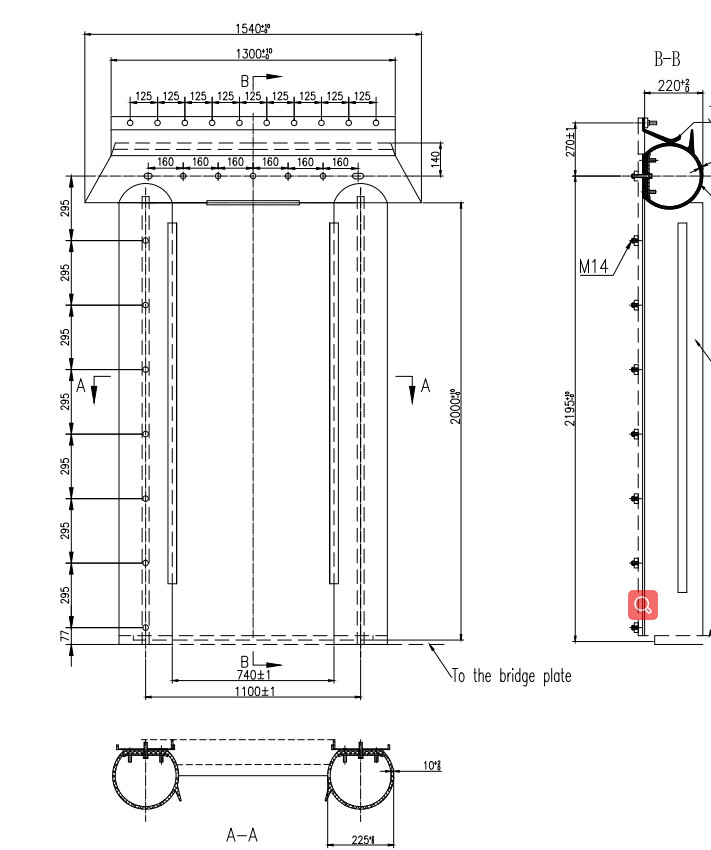

Drawing

Production Equipment

Railway Fire Resistant Gangway In Train NR Steel Train End Gangways

Test Equipment

Railway Fire Resistant Gangway In Train NR Steel Train End Gangways

Application

Railway Fire Resistant Gangway In Train NR Steel Train End Gangways
